Description
The smallest, light weight automatic welding machine to well a range of thermoplastic geomembranes.

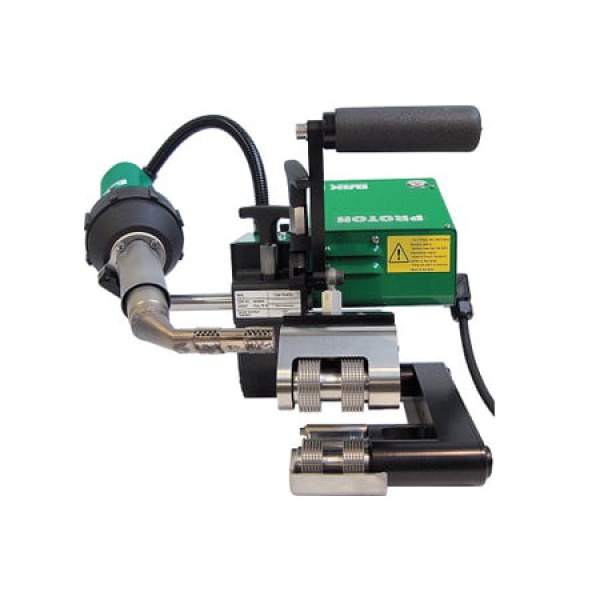

The Proton is a combined “Wedge” and “Hot Air” welder, with a brushless motor/heater unit.
For Civil engineering and tunnel (overhead) welding applications.
- Voltage 230 volt
- Wattage 2200 watt
- Temperature range up to 550 Deg C
- Welding Speed max. 5m/minute
- Material welding range: PE-LD, PE-HD, PVC-P, PP, ECB, EVA, TPO
- Dimensions 370mm x 340mm x 330mm
- Seam dimensions 15mm – 15mm – 15mm (centre channel unwelded)
- Weight 9.8 kg’s
- CE conformity
- Made in Switzerland
Documents
Brochure Techspan Proton Wedge/Hot Air Welder
