Description

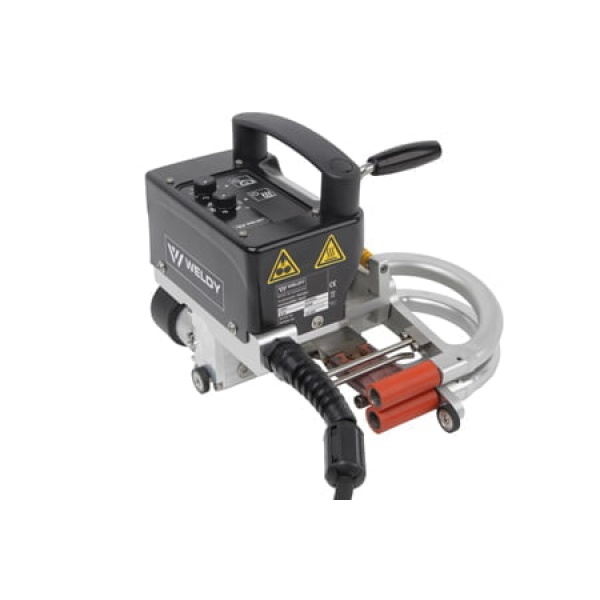

The Wedge Welder tex 2 is designed for welding of thin flexible thermoplastic sheets
The tex2 is supplied with a Chromium Steel 20mm wide wedge
- Swiss development & engineering
- Voltage V~ 230
- Power W 800
- Wedge Temperature °C 50 – 450
- Speed m/min 0.4 – 7.5
- Welding seam width 1 x 20mm
- 20 w/o interior cavity
- Chromium Steel Wedge (tex2)
- Overlap width mm 100
- Material thickness mm 0.1 up to 1.0mm
- Dimensions (L × W × H) mm 228 × 228 × 170
- Weight kg 4.0
- Protection class I
Documents
Tex 2 mini wedge welder operating instructions
