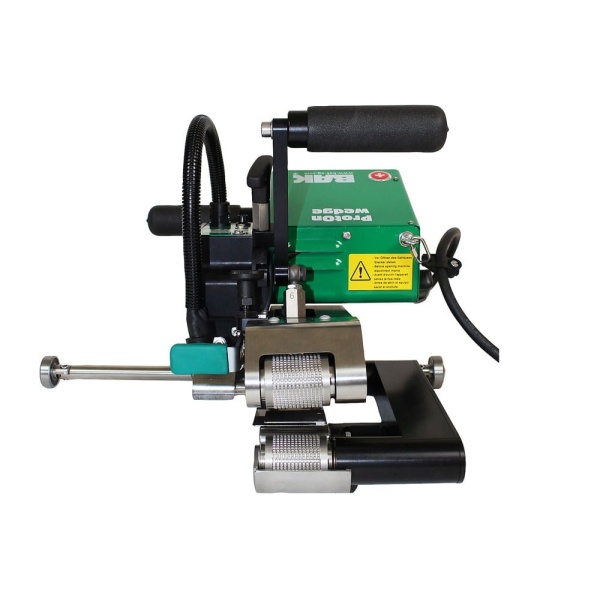

PROTON Wedge Welder
Hot wedge welder to prefabricate thin material. The small and light weight hot wedge welding machine to prefabricate thin materials.
- small, light and fast
- drive motor brushless
- to prefabricate thin material
- simple to operate
- stepless adjustment of all welding parameters
- material welding range: PE-LD, PE-HD, PVC-P, PP, ECB, EVA, TPO
- Perfect welding seams with high welding speed.
Technical data
- Voltage V 230
- Power consumption W 900
- Frequency Hz 50/60
- Temperature °C max. 420
- Speed m/min. max. 2.5
- Welding pressure N max. 1200
- Dimensions (l x w x h) mm 370 x 435 x 280
- Seam dimensions (other sizes on request) mm 35
- Suitable for welding membrane thickness
– HDPE 0.3 – 1mm
– LDPE 0.5 – 1.5mm
– PVC 0.5 (with net 0.3) – 2.4mm - Weight kg 9.5
- CE conformity
