Description

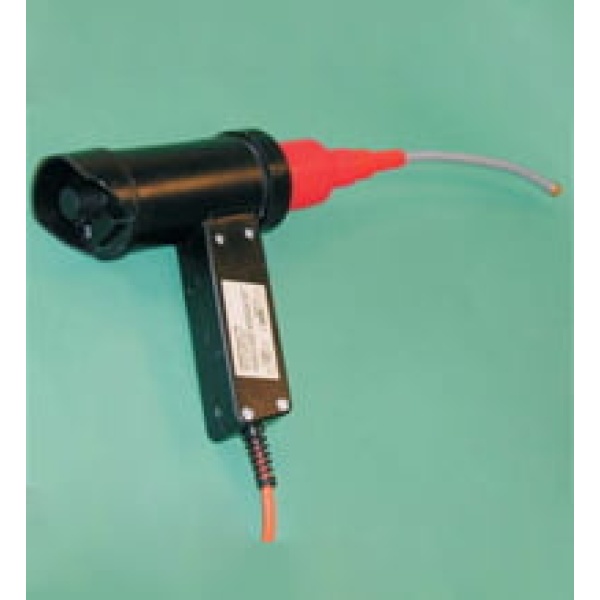

Spark tester Gun only LESP
Fast, safe density testing of welding seams, containers and manufactured coatings
HF spark tester hand tool.
Hand tool only – without carry case, without accessories
- HF spark tester
- Hand ‘pistol’ gun design
- Complete with standard Electrode probe
- Non contact spark generation
- Maintenance free
- Integrated stabilisation switch
- Independent operation in case of mains voltage fluctuations
- CE Conformity
Documents
Video of the Spark Tester
This demonstration is done without any weld, to show you how the spark is seen to ‘arc’ across to a conductive material placed behind the work area. In this case we used a piece of steel angel behind the work area. Ideal to ensure your welding is free from any defects and to prove water tightness.
The Spark Tester can be supplied as a “kit” or with just the “tool only”.
Common applications for the spark tester gun
- QA inspection of completed HDPE and PVC welds on tank fabrications
- Pinhole and porosity detection in geomembrane and dam liner seams
- Industrial chemical tank weld verification before commissioning
- Replacement gun for a base unit you already own
- Supplementary gun for crews running multiple test stations
How it works
The gun applies a high-voltage spark across the weld surface using a copper bristle brush. The opposite side of the weld is connected to earth via a copper strip embedded during welding. Any pinhole or porosity creates a visible spark, marking the fault for re-welding.
FAQs
Does the gun work standalone?
What voltage does it operate at?
Is it safe to use?
{“@context”:”https://schema.org”,”@type”:”FAQPage”,”mainEntity”:[{“@type”:”Question”,”name”:”Does the gun work standalone?”,”acceptedAnswer”:{“@type”:”Answer”,”text”:”No. The gun is the testing handpiece and requires the spark tester base unit to operate.”}},{“@type”:”Question”,”name”:”What voltage does it operate at?”,”acceptedAnswer”:{“@type”:”Answer”,”text”:”Spark testing typically runs at 10-30kV depending on the substrate thickness.”}},{“@type”:”Question”,”name”:”Is it safe to use?”,”acceptedAnswer”:{“@type”:”Answer”,”text”:”Standard high-voltage safety procedures apply.”}}]}
