Description
Eyelet / Grommet Hand Press Machine HP-9 (semi-automatic)
Features:
- Fitting grommets inner diameter 10mm or 12mm (Special single grommets)
- Automatic feeding eyelets, highly efficient
- Suitable for all PVC flex banners, Tarps, Covers, Shade sails, Roller blinds, Curtain siders..
Eyelet hand pressing tool HP-09, semi-automatic with a cartridge for 100 eyelets, inner diameter 10 mm or 12 mm
- Cast Alloy Frame
- Manual operation, no electricity needed
- Riviting in one single step (incl. piercing)
- Mobile (4 castors) and easy to operate
- For professional users (PVC flexes banners, X-banners, advertisement, leather goods, etc.
Technical Data:
- Hole size 10mm or 12mm – please specify grommet size on order
- Flange diameter 19mm
- Lower flange height 5mm
- Size (L × W × H) – 595mm X 24.5mm X 90mm (H x L x W）including the handle
- Weight 9 kg
VIDEO : Techspan HP-09 Eyelet Machine
Applications for the semi-automatic eyelet press
- Truck tarp manufacturing – perimeter eyelets for tie-downs
- Pool cover and marine cover fabrication
- Banner manufacturing – corner and edge eyelets for hanging
- Awning and outdoor blind production
- Industrial cover and tarp repair
Eyelet sizes
The press handles standard 8mm, 10mm and 12mm brass or aluminium eyelets – the sizes used across the bulk of NZ tarp, banner and cover manufacturing. Larger eyelets (16mm, 20mm) require a heavier-duty industrial press.
FAQs
How fast can I install eyelets with this press?
A trained operator can install 200-300 eyelets per hour on standard tarp fabric. Hand presses are typically 50-80 per hour. The press pays for itself quickly in tarp production environments.
What fabric weights work with this press?
The press handles standard PVC tarp fabric from 380 GSM through 900 GSM truck tarp. For exceptionally heavy industrial fabric (1500+ GSM) a hydraulic press is more appropriate.
Can I use this for fabric other than PVC tarp?
Yes – any fabric or sheet material that takes a standard eyelet works. Common uses include vinyl banners, mesh banner fabric, canvas, leather goods and packaging.

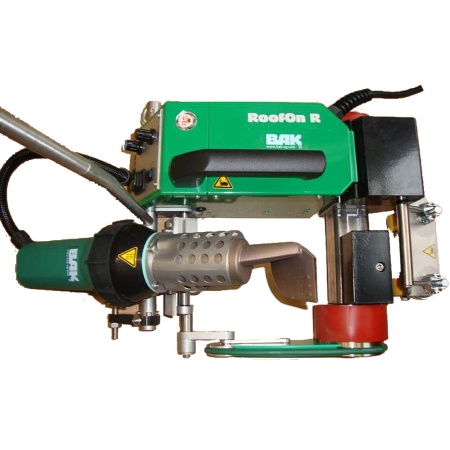

Building a tarp shop? Pair with our automatic overlap welder for seam fabrication and a tarps & covers kit for hand welding details. See our eyelet press overview guide.
